BENEFITS OF DOE-BASED TRYOUTS
WITH VARIMOS REAL
cycle time, quality
Using an efficient DOE approach to mold tryouts, VARIMOS Real can often improve part quality AND cycle time simultaneously.
It's not either or!
As a matter of fact, you can also optimize other production line settings like hot runner controllers, temperature controllers, gas assist controllers, etc.
How much can settings change, before you violate tolerances?
VARIMOS Real's Process Window Analysis will show you how wide your process window is.
Better time planning
You'll know in advance how many trials you will need, thanks to the systematic DOE. No more trials than necessary!
Because tryout time is now predictable, you can plan your machine and production time more smoothly.
First time right
cause and effect
VARIMOS Real is not a black box. It will not only suggest an optimal solution, but also show you how quality changes, if you change machine settings.
CONCLUSIVE ANSWERS, BETTER RESULTS
VARIMOS Real helps you to get the definitive answers you need:
- What are the best machine parameters?
- At optimal settings, will I be able to meet my tolerances? Will I need a mold correction?
- Are there ways to reduce cycle time, without sacrificing quality?
- How robust is my process? How wide is my process window?
- Which machine settings have the biggest impact on part quality?
- How would results change, if I changed machine settings?
not a black box!
VARIMOS Real doesn't just present you with a single black-box "optimum" solution. Rather, it makes a suggestion, and then you can play around, change parameter settings, and instantly see what would change, if you did it differently.

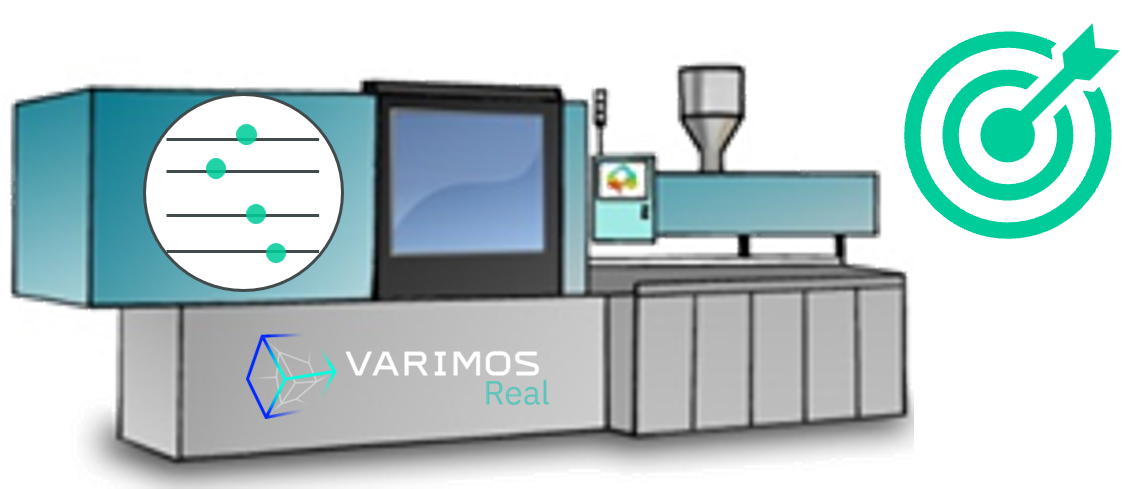

Simply change the machine parameter sliders on the left, and instantly see what will happen to your results, on the right. The results update in real-time.
Sensitivity answers the question: How do your parameters influence part quality? You can interactively vary the parameters using simple sliders and immediately see how that will impacts your results.
This allows you to see at first glance which machine parameters have the biggest impact on results, and which don't matter much.
This analysis will also help you to understand tradeoffs. For example, if you lengthen the cooling phase, sometimes this can improve shrinkage and warpage, but worsen cycle time. VARIMOS Real makes these tradeoffs very apparent, so that you can discuss them with your colleagues and customers, and make a well-informed decision, all things considered.
VARIMOS Real will help you to find optimal injection molding machine settings.
But its recommendation is not a black box: you can also change the settings, and VARIMOS Real will show you in realtime, how your quality and cycle time will change, if you do things differently.
Best of all: since these predictions are based on real-world measurements, there is no simulation uncertainty!
How far could a machine parameter change, before you violate part tolerances? Use the Process Window Analysis toolkit in VARIMOS Real to find out.
Ideally, you'll want your part quality measures to be in the center of their tolerance range. This gives the most robust process because it maximizes distance to the tolerance limits.
VARIMOS Real's Process Window Analysis shows you the admissible settings range around your optimal settings. It tells you how far a setting could be changed, without violating quality tolerances. The wider this admissible settings range is, the more robust the injection molding process is. Conversely, if your part quality features are too close to their tolerance limits, then even small variations of the process can cause quality problems, resulting in a robustness issue.
Get conclusive results about robustness with the Process Window Analysis tool -- no more guesswork!
Even if you've found a setting that's better than where you started, is it really the best setting possible?
We often find that with a systematic tryout approach using VARIMOS Real, you will find better solutions that improve cost, quality and speed!
Waste of material
If you don't get the results you want, you're likely to keep trying. Inefficient tryouts result in lots of scrap material!
Waste of time
If you don't get the results you want, you're likely to run more than one tryout session. This means multiple interruptions of productive time.
It's hard to know when to stop, because you don't know for sure whether a better solution exists.
How does VARIMOS Real work?

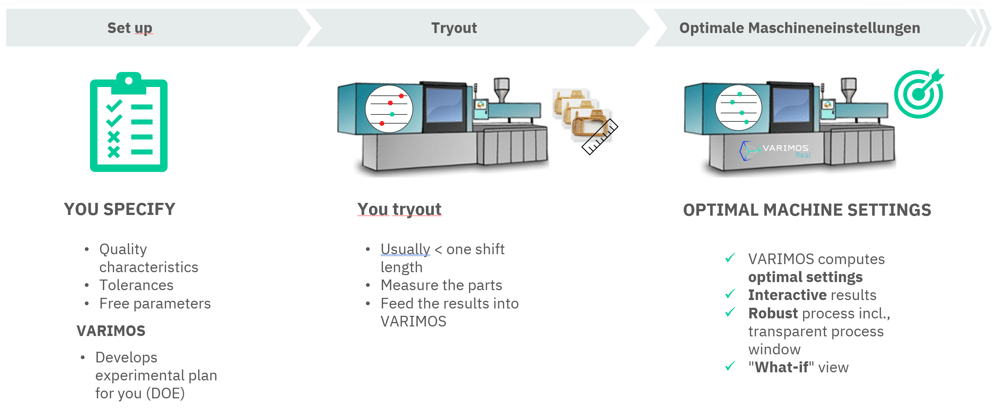

- PLAN: Tell VARIMOS Real which machine settings you can vary and how you want to measure the part quality. (Almost all types of settings and quality characteristics are accepted: see FAQ). If you've simulated in advance, your simulated optimum serves as a starting point. VARIMOS Real designs an efficient design of experiments (DOE / Design of Experiments). The plan is efficient: no more trials than necessary! You know in advance how many experiments you will need. This makes it easier to plan your production and machine time in advance.

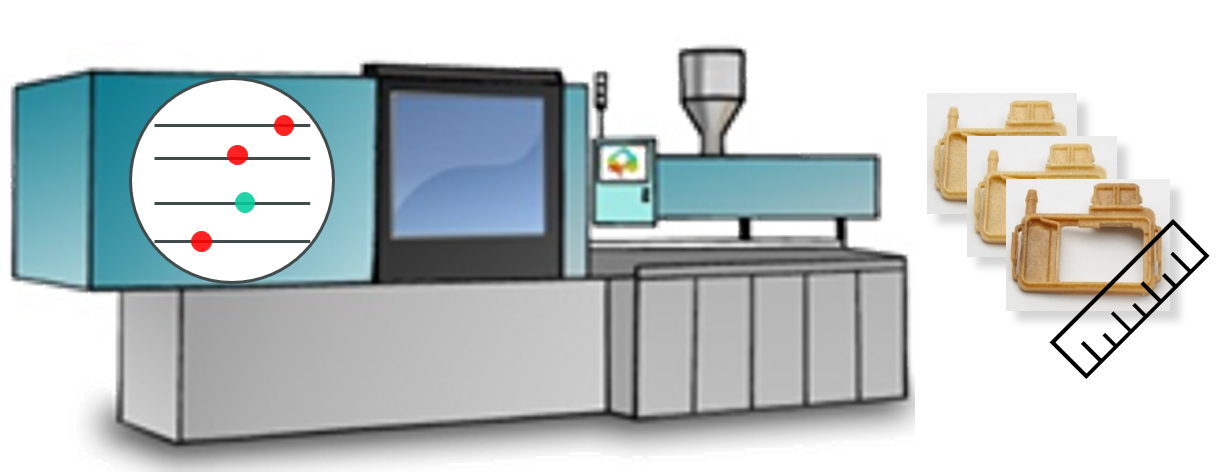

- TRY: You run your sampling plan on the machine to produce trial parts
- MEASURE: You evaluate / measure the quality of the produced trial part.
- ANALYZE: VARIMOS's AI learns cause and effect. It shows you the effects of parameters on quality. You can see the width of the process window, to evaluate robustness.
- OPTIMIZE: The AI in VARIMOS makes a suggestion for optimal parameters. However, it's not a black box suggestion. You can edit the settings to do a what-if analysis. You'll see instantly what will happen if you do things differently. You discuss and refine the solution with your customers and colleagues.
- RESULT: You have now found the optimal machine settings. These are the best results achievable with this mold. If the quality at these optimal settings is good enough, no mold correction is necessary.
Tired of discussing whether you need a mold correction?
Sometimes, during sampling, you will find that your injection molded parts are not yet perfect. The questions is: do you need to change the mold, or are there ways to fix quality, by adjusting machine settings?
Often times, management will ask you to try a few more settings -- because maybe there is a better way, and corrections can be avoided.
Get conclusive answers, after exactly one tryout session
The truth is, however, that you cannot actually try all possible combinations of parameters. Injection pressure profiles, temperature control, clamping forces, etc. all have an impact, and there are infinite possible combinations of settings.
VARIMOS Real helps you resolve this question definitively, using a design of experiments (DOE) approach. VARIMOS Real uses a model to predict part quality results for any parameter combination within the min/max range of settings you used during tryouts. There is even the possibility to estimate part quality outside the tryout space (extrapolation).
The advantage: You waste less time, material and energy, and your results are conclusive the first time.
BETTER TOGETHER: CONNECTING ENGINEERING TO THE SHOP FLOOR
SIMCON believes in a better together philosophy. You'll get superior results if you combine the best simulation technology in part and mold engineering with the best sampling technology on the shopfloor.
Engineering should pre-optimize parts, molds and process using plastic injection molding simulation. The VIRTUAL variant of VARIMOS helps your colleagues in part and mold engineering to explore more options, quickly. The result is an optimized part and mold design, and a first hypothesis on optimal machine parameters.
These pre-optimized parameters should then be tested, refined and improved during mold tryouts, using VARIMOS REAL. Here, the experimental design is not simulated, but physically carried out on the machine. This eliminates any remaining simulation uncertainty. Your results are real-world results. Using VARIMOS Real, you determine the final parameters, to do a final optimization of quality and cycle time, before you go in to serial production.
It's important that you then give feedback to engineering. Engineering need to know what you've changed and why. This way, machine setters can help engineering to learn from real-world results and use that information to work even better in the future. Engineering and mold setters help each other out. They're better together!
